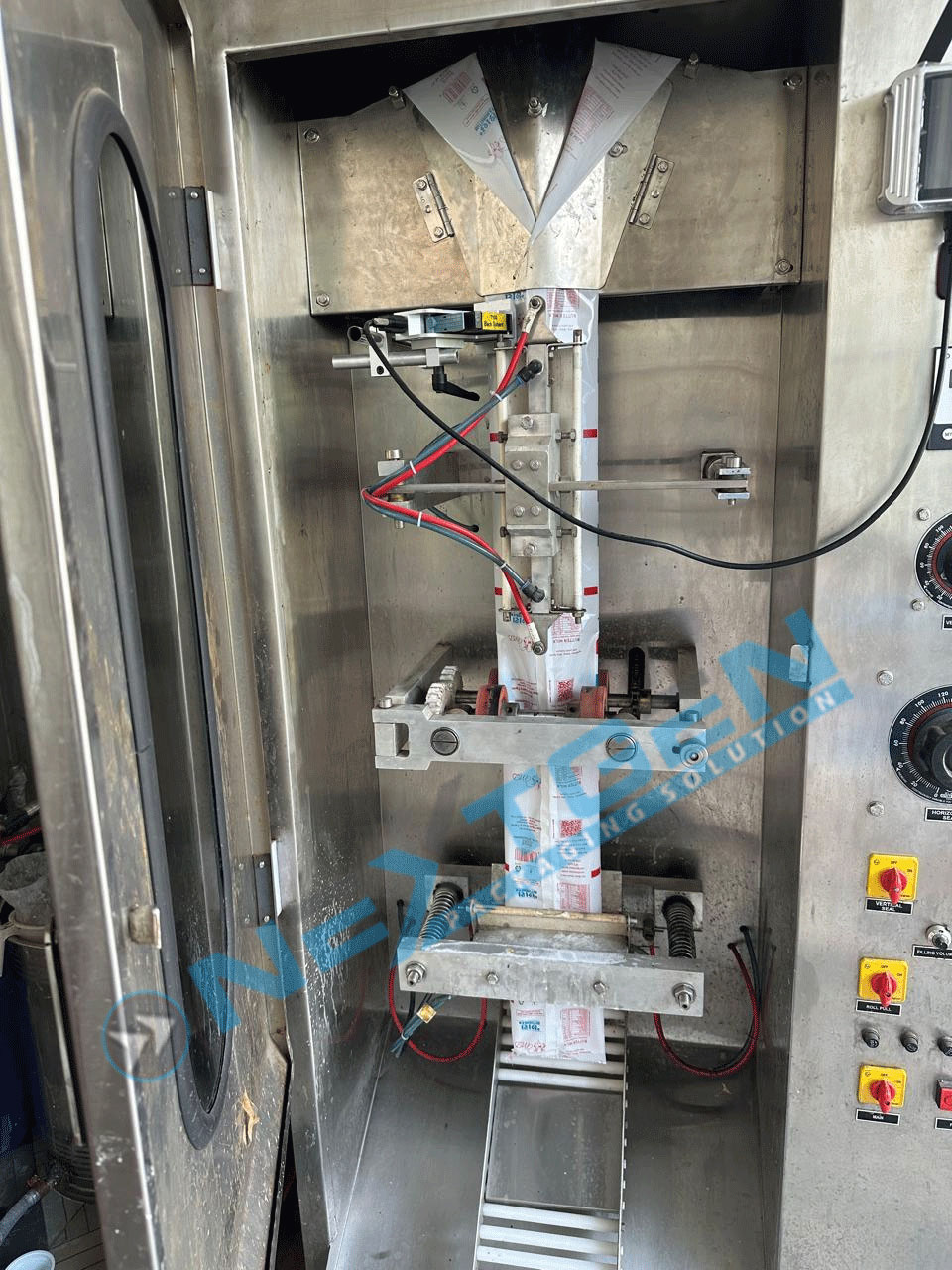

Automatic Liquid Pouch Filling Machine

Home / Automatic Liquid Pouch Filling Machine

Nextgen Packaging Solutions stands out as a trusted manufacturer and supplier of automatic liquid pouch filling machines in India, serving clients across diverse industries with innovative, efficient, and reliable packaging solutions. Based in Ahmedabad, Gujarat, Nextgen is recognized for its commitment to quality, advanced technology, and customer-centric approach, making it a preferred partner for businesses seeking seamless liquid packaging automation

Nextgen’s automatic liquid pouch filling machines are engineered for high-speed, precision filling of various liquids, including water, milk, juices, oils, chemicals, and more. The automated process ensures consistent pouch quality, accurate fill levels, and minimal product wastage, optimizing your production efficiency.

Nextgen offers a range of models and customization options to suit different pouch sizes, filling volumes, and product viscosities. Whether you require single or multi-lane filling, the machines can be tailored to meet your specific requirements.

Why Choose Nextgen for Liquid Pouch Filling Machines?

  • High-Speed Operation
  • Accurate Filling System
  • Robust Stainless Steel Construction
  • Customizable Configurations
  • User-Friendly Interface

Why Choose Nextgen for Liquid Pouch Filling Machines?

Our servo liquid filling machines are equipped with state-of-the-art servo-driven systems, ensuring accurate and consistent filling volumes for a wide range of liquid viscosities. The use of servo motors allows for precise control, minimal wastage, and high-speed operation, making them ideal for both small and large-scale production lines.

We understand that every business has unique requirements. That’s why we offer fully customizable machines, including options for different filling heads, bottle sizes, and automation levels. Whether you need a semi-automatic or fully automatic setup, our team can design the perfect solution for your packaging needs

Our servo liquid filling machines feature intuitive touch-screen interfaces and PLC-based controls, allowing operators to set parameters, monitor operations, and perform quick changeovers with minimal training. This enhances productivity and reduces downtime.

Technical Specifications of Liquid Pouch Filling Machine

Parameter >Specification
Product Range Water, milk, edible oil, juices, ghee, liquid chemicals, viscous liquids
Filling Capacity 40 ml to 1000 ml (customizable for specific applications)
Filling System Volumetric piston or gear pump (S.S. 316 contact parts)
Filling Accuracy ±1% to ±2%
Production Speed 16–20 pouches/min (for high-viscosity products)
900–1200 pouches/hour (for water, milk, etc., 200–1000 ml)
Pouch Size Width: 150–325 mm (customizable)
Packing Material Multilayer low-density polyethylene film (LDPE), 50–110 microns thickness
Film Roll Width 325 mm ±2 mm
Film Roll Weight 15–20 kg
Seal Type 3-side, 4-side, or center seal
Material of Construction Main frame: Mild steel (MS) with stainless steel (SS304/SS316) cladding
Contact parts: SS316 or SS304
Power Supply 230 V/440 V, 50 Hz, single or three-phase
Power Consumption 1 kW/hr (approximate)
Machine Weight 350 kg (approximate)
Machine Dimensions 800 x 875 x 1850 mm (W x H x D) or 1100 x 850 x 2000 mm (L x W x H)
Motor Crompton, Godrej, GE (single phase)
Control System PLC with HMI/touch screen interface
Additional Features Photo sensor, date coding unit, pouch counter, quick changeover, safety guards
Maintenance Easy access for cleaning and servicing; minimal downtime
